Product Information And Image
| Product Specification | Product Image | |
|---|---|---|
| Manufacturer | BACHMANN |  |
| Product No. | ISI222 | |
| Product Type | Positioning Module | |
| Data format | Graycode and binary format, others can be evaluated by SW | |
| Transfer clock rate | 100 kHz to 2 MHz | |
| Synchronization | Via preSYNC function | |
| Output voltage ranges | +5 V and +15 V selectable with jumper, 24 V looped through | |
| Ripple | < 150 mVss at +5 V and +15 V | |
| Galvanic isolation of channels | 500 V | |
| Output voltage | ±10 V | |
| Origin of Country | Austria | |

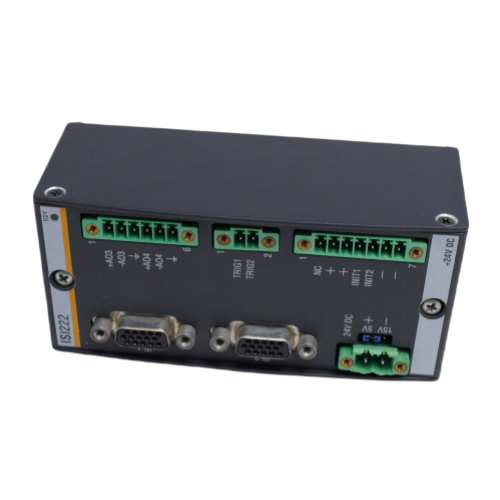

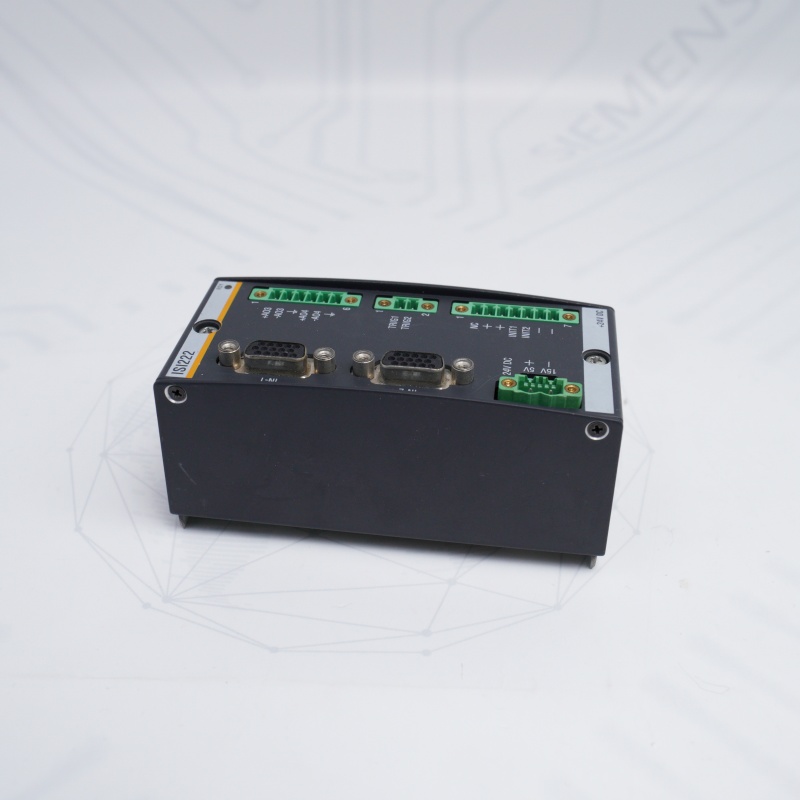

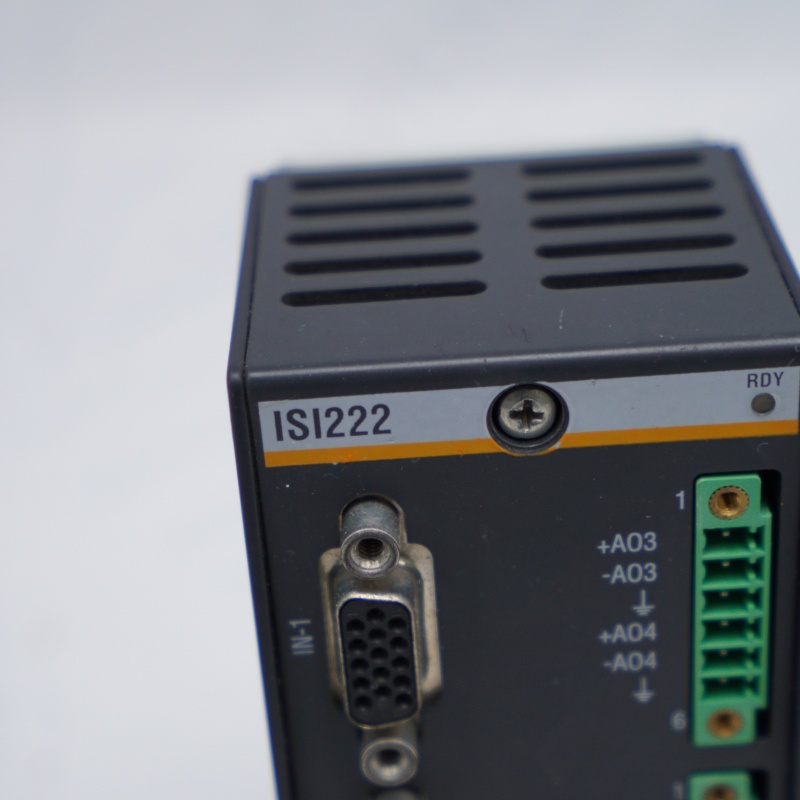

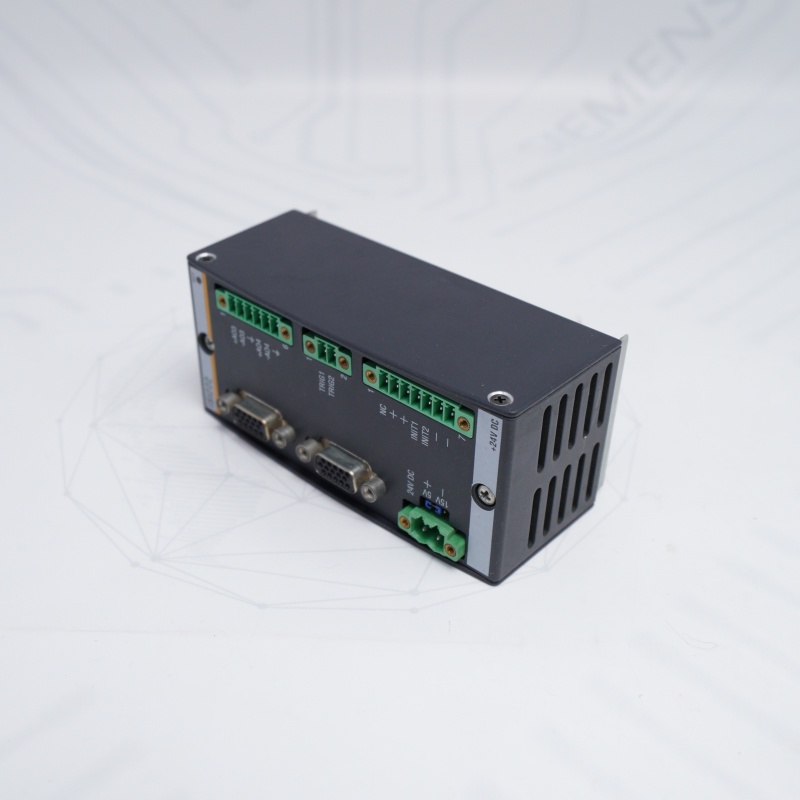

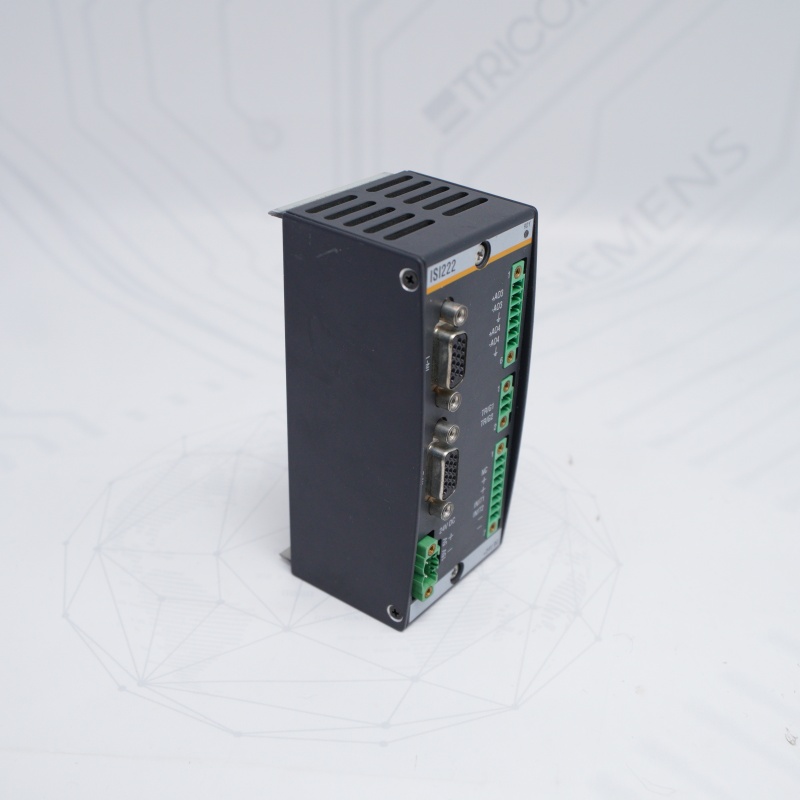

BACHMANN ISI222 Description
The ISI222 Bachmann Positioning Module provides detailed output capabilities with T- and T+ signals in Graycode and binary formats. It supports a transfer clock rate from 100 kHz to 2 MHz and features synchronization through the preSYNC function. The encoder power supply offers selectable output voltages (+5 V, +15 V) with precise tolerances, short circuit protection, and low ripple. The module includes two analog outputs with 14-bit resolution, ±10 V output, and a fast conversion time of <40 µs. It also features wire break and short circuit detection with galvanic isolation and precise synchronization via the SYNC signal. |
If you want to more details，please contact me without hesitate.Email：sales@sparecenter.com
