H7506 HIMA DIN Montajlı Otobüs Terminali

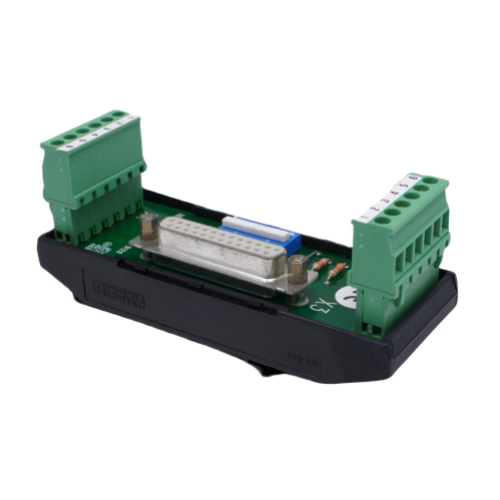

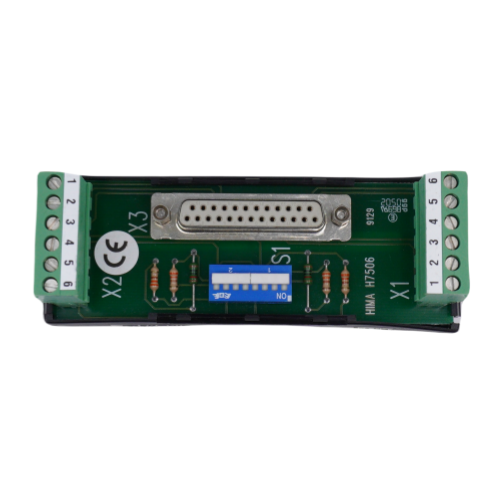

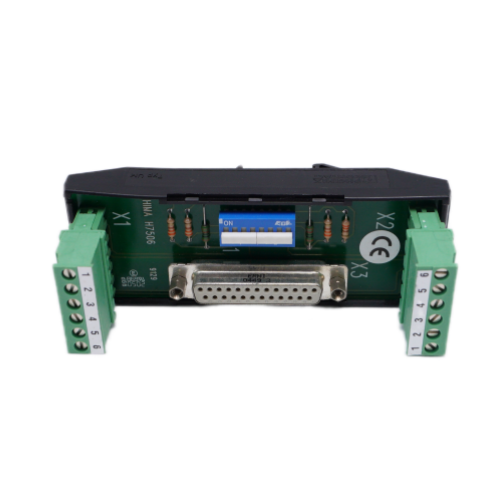

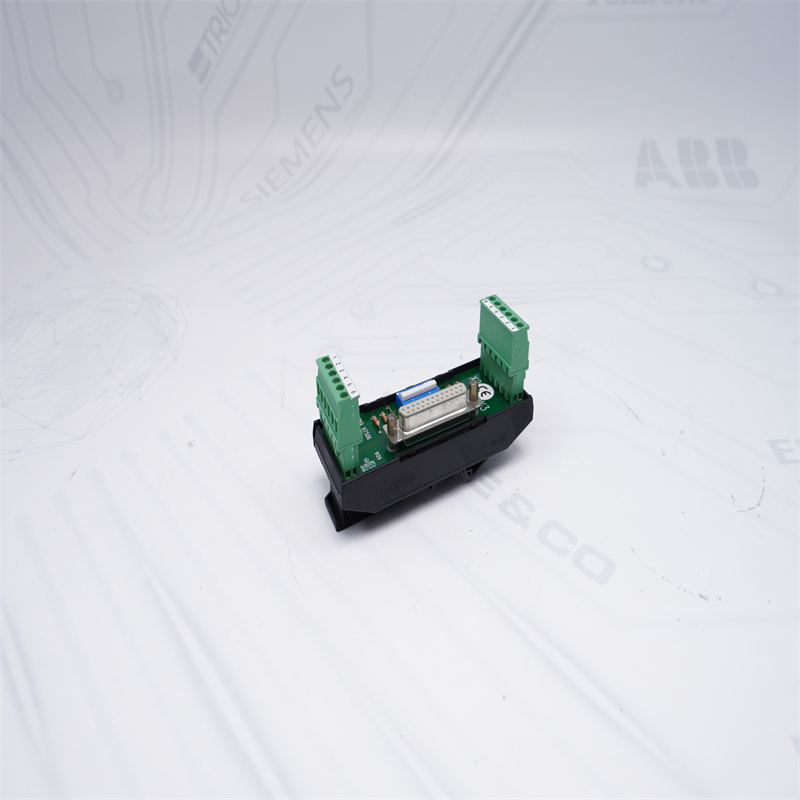

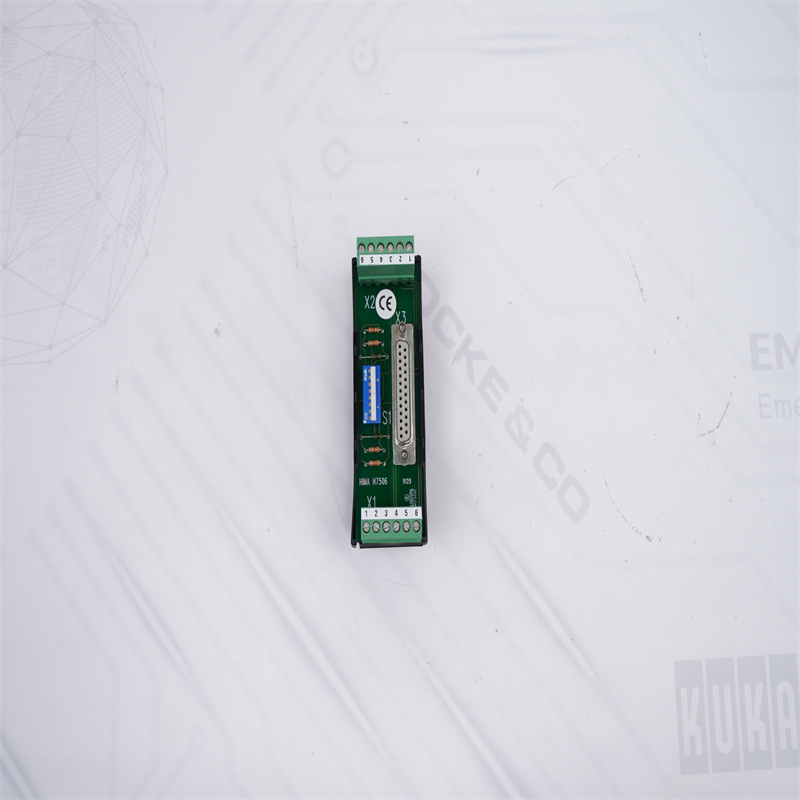

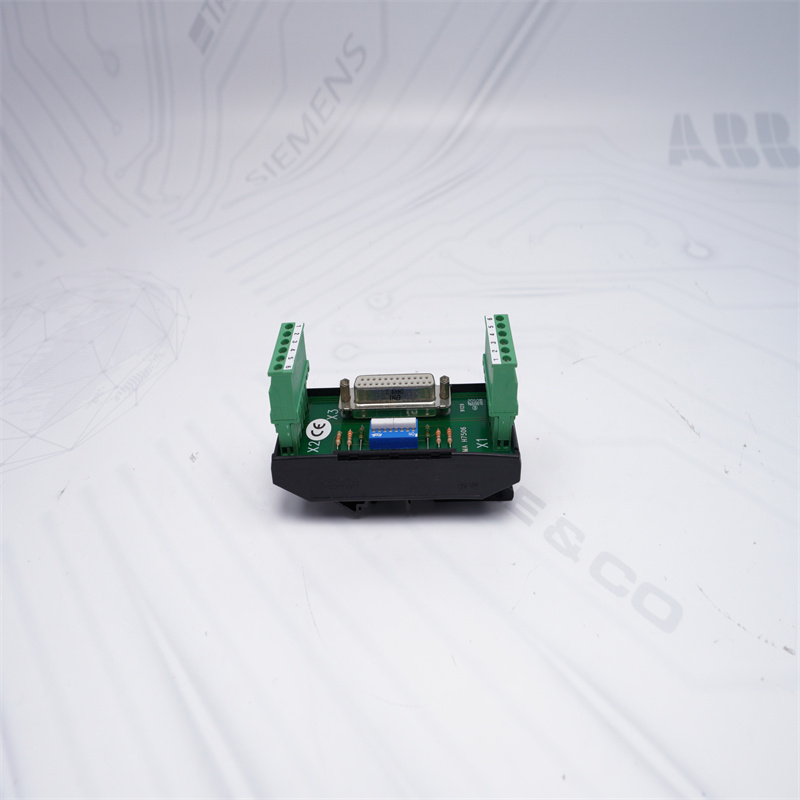

The HIMA H7506 DIN rail bus terminal module is designed for robust industrial connectivity. It features a 25-pole Mini D-Socket for interfacing with PES systems and two 6-pole clamps for 2-wire bus connections. The module supports a maximum transmission length of 2400 meters with a 0.5 mm² wiring cross-section, ensuring reliable data transfer over long distances. It includes integrated switches for bus terminating resistors, enhancing signal integrity. With a loop resistance of 180 Ω, the H7506 is a versatile solution for maintaining stable communication in industrial automation systems.

DIN Rail Mountable: Facilitates easy and secure mounting on standard DIN rails, simplifying installation and maintenance.25-Pole Mini D-Socket: Provides robust connectivity for single-channel and redundant PES systems, ensuring stable and reliable data transfer.2 x 6-Pole Plug Clamps: Allows for secure and flexible 2-wire bus connections, accommodating various industrial wiring needs.Extended Transmission Length: Supports up to 2400 meters with a 0.5 mm² wiring cross-section, suitable for large-scale installations and extended communication distances.

The H7506 features integrated switches for activating bus terminating resistors at each end of the 2-wire bus. This functionality is essential for minimizing signal reflections and ensuring clear data transmission. By correctly terminating the bus, the module helps maintain signal integrity over long distances, reduces data transmission errors, and prevents issues such as data loss or corruption. This built-in feature simplifies setup and maintenance, ensuring reliable operation in complex and extended bus systems.
