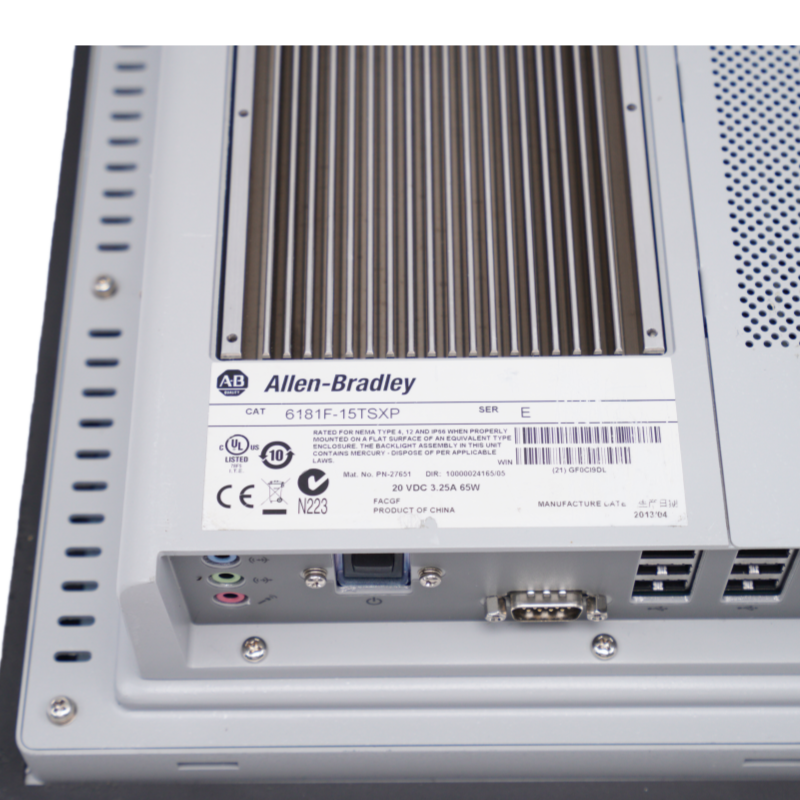

Allen Bradley 6181F-15TSXP ENTEGRE EKRAN BİLGİSAYARI

The 6181F-15TSXP COMPUTER by Allen-Bradley that offers visualization and control via the 15-inch active matrix thin film-transistor flat panel with an antiglare and resistive touch surface.

The 6181F-15TSXP COMPUTER offers a 305mm x 229mm (12in x 9 in) display dimension and a resolution of 1024 x 768 pixels in about 16.7M colors with a 15ms refresh rate and maximum viewing angles of 400 and 600 (vertical and horizontal). 6181F-15TSXP COMPUTER requires 100-240V AC auto-ranging input voltage at 47-63Hz with 1A and 0.42A input current at 100 and 240V RMS with a 100VA power consumption, respectively.

The 6181F-15TSXP INTEGRATED DISPLAY COMPUTER comes with a 1.06GHz Intel Celeron M423 processor with a 1M, L2 data cache size, and 4GB max dual-channel DDR2 memory slot. 6181F-15TSXP COMPUTER comes with 2GB pre-installed system memory (expandable to 4GB max) and a 16GB compact solid-state drive and it does not support DVD-RW/CD-RW slots or any PCI expansion slots.

The 6181F-15TSXP INTEGRATED DISPLAY COMPUTER comes in a NEMA type 1, 4, and 12 enclosure, and it can only dissipate 65W heat when operational. Its working temperature ranges between 0 and 50 °C (32 and 122 °F) at 10-90% non-condensing humidity and 6181F-15TSXP COMPUTER can be mounted and installed at an altitude of 2,000m (6,561ft) without de-rating.

6181F-15TSXP COMPUTER is built to resist a 2G operational vibration at 57-640Hz, and it can withstand an operating shock of 15G. The 6181F-15TSXP COMPUTER weighs about 9kg (19.8lb), with dimensions of 309 x 410 x 95 mm (12.16 x 16.14 x 3.74 in.), and it is CE, C-TICK, c-UL-us, and RoHS-certified.
