Ürün Özellikleri
| Üretici firma | Bently Nevada | Bently Nevada 3500/44M |
| Ürün No. | 176449-03 | 176449-03 |
| ürün tipi | 3500/44M Aeroderivitive GT Titreşim Monitörü | Bently Nevada 176449-03 |
| Boyutlar (Yükseklik x Genişlik x Derinlik) | 241,3 mm x 24,4 mm x 241,8 mm (9,50 inç x 0,96 inç x 9,52 inç) | Bently Nevada Titreşim Monitörü |
| Ağırlık | 0,91 kg (2,0 lb) | 3500/44M |
| Çıkış empedansı | 550 Ω | 3500/44M |
| Dönüştürücü Güç Kaynağı | Maksimum 43 mA'da 23 Vdc nominal | 176449-03 |
| Giriş Güç tüketimi | 7,7 Watt, tipik | Bently Nevada Titreşim Monitörü |
Ürün Grafikleri ve Şekilleri Ve Detayları

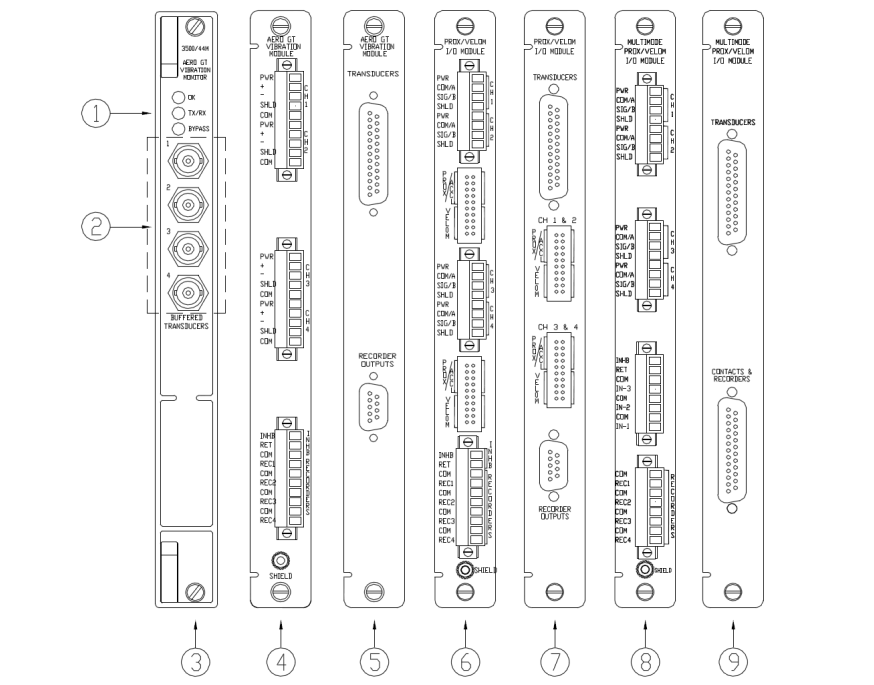

Grafikler ve Şekiller: 1. Durum LED'leri 2. Tamponlu Dönüştürücü Çıkışları 3.3500/44MAeroderivitive GT Titreşim Monitörü Ana Sayfası Modül 4. Dahili Sonlandırmalara Sahip Aero GT I/O Modülü 5. Harici Sonlandırmalara Sahip Aero GT I/O Modülü 6. Prox/Velom G/Ç, Dahili Sonlandırmalar 7. Prox/Velom I/O, Harici Sonlandırmalar 8. Çok Modlu Prox/Velom I/O, Dahili Sonlandırmalar 9. Çok Modlu Prox/Velom I/O, Harici Sonlandırmalar 3500/44M 176449-03Bently NevadaTitreşim Monitörü.Bently Nevada 3500/44M.Bently Nevada 176449-03. |

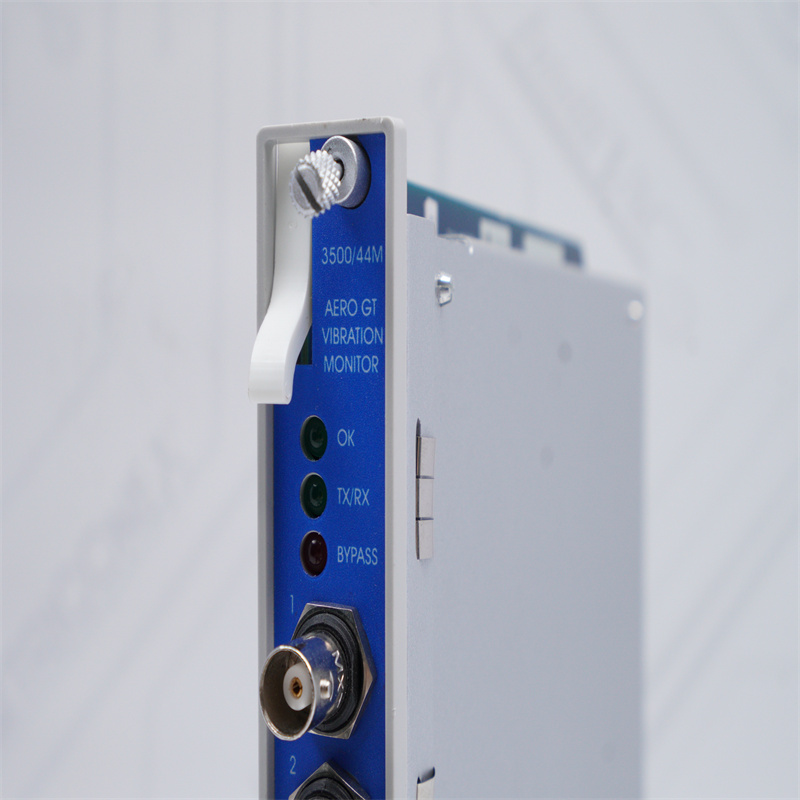

Ön ve Arka Görünümleri3500/44MMonitör |
Özellikler: Dört Kanallı Monitör Aeroderivatif Gaz Türbini Uygulamaları için Tasarlandı İki Ayrı Anahtar Fazör Sinyalinden Girişi Kabul Eder Bently Nevada3500/44M Aeroderivative GT Vibration Monitor is a four-channel monitor designed for Aeroderivative Gas Turbine applications. The Aero GT and TMR Aero GT I/Os interface to velocity transducers through Bently Nevada interface modules 86517 and 86497. The monitor uses the Prox/Velom I/O to interface to Bently Nevada Velomitor sensors and accelerometers. The user can configure the 3500/44M, using the 3500 Rack configuration Software, for any of the following filter options: signal Integration, 1X vibration tracking, or band-pass vibration. The 3500/44M accepts input from two separate Keyphasor signals, allowing each channel pair to use a different tracking filter. |

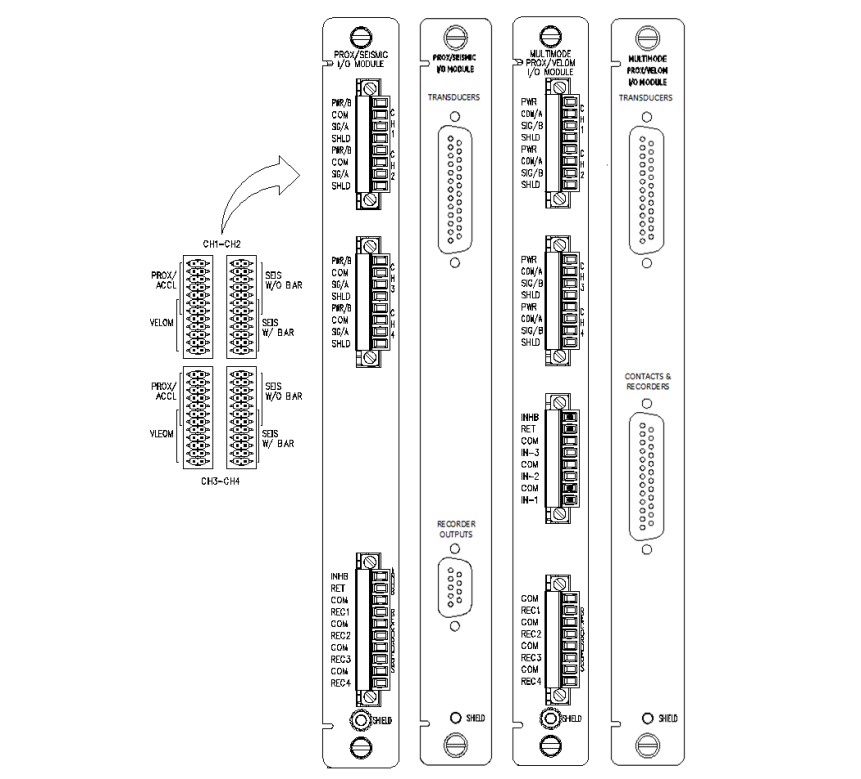

Side View of I/O Modules |
If you want to more details，please contact me without hesitate.Email：sales@sparecenter.com
Product Images

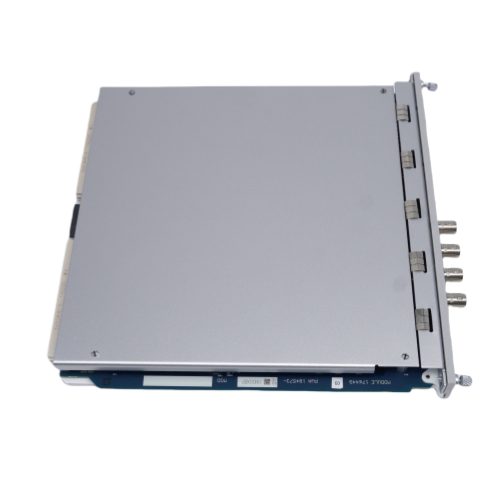

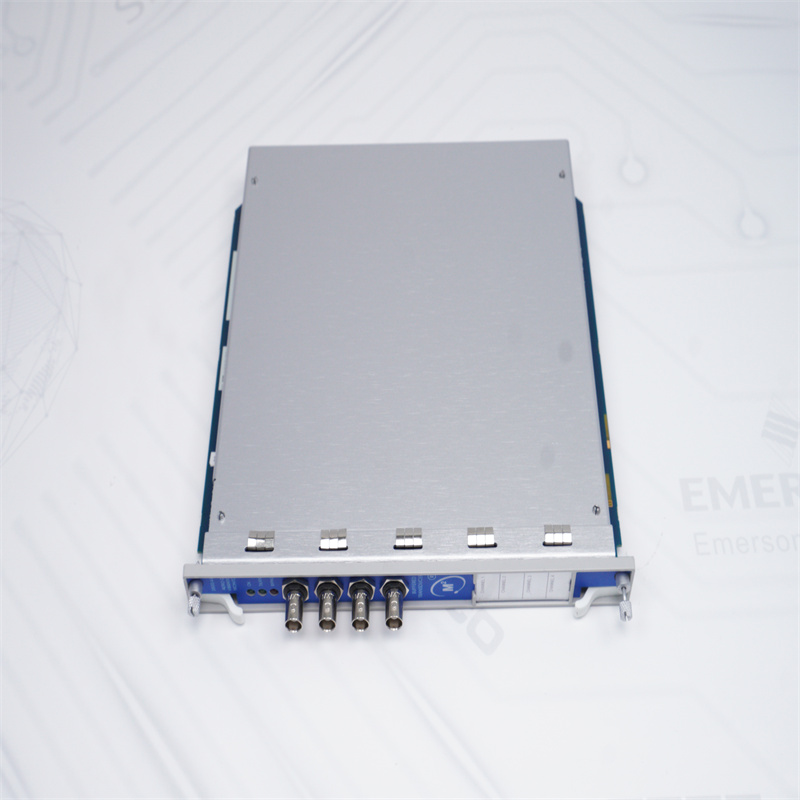

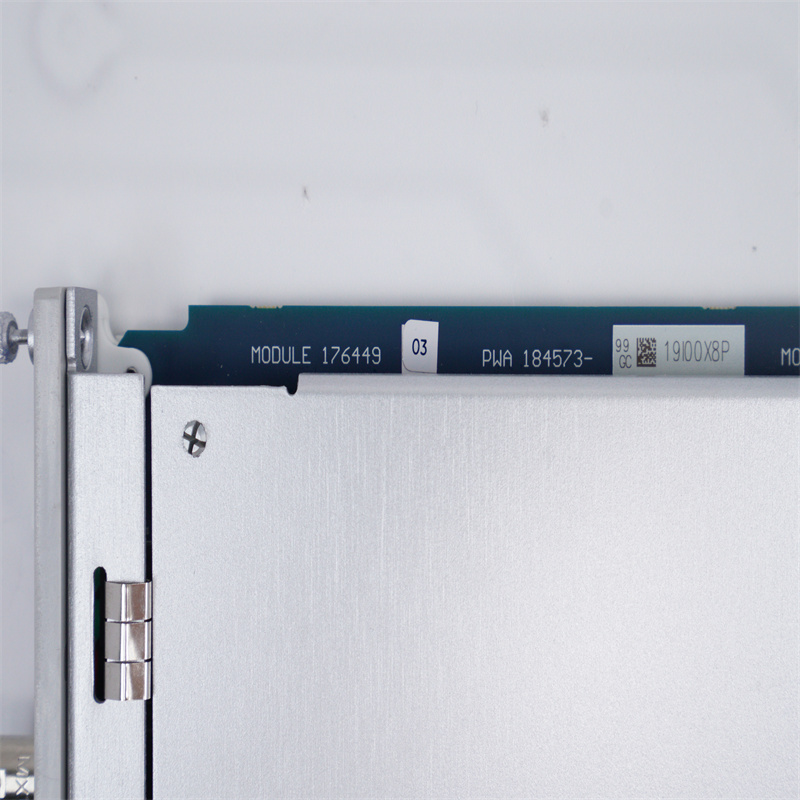

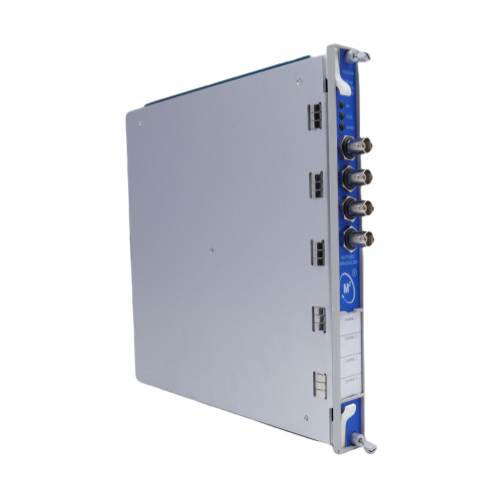

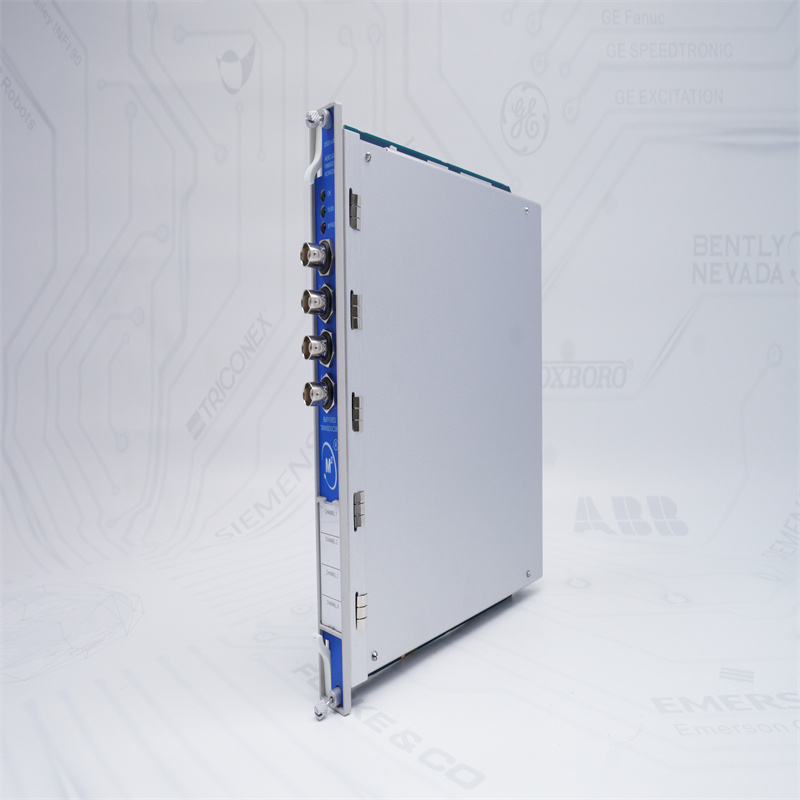

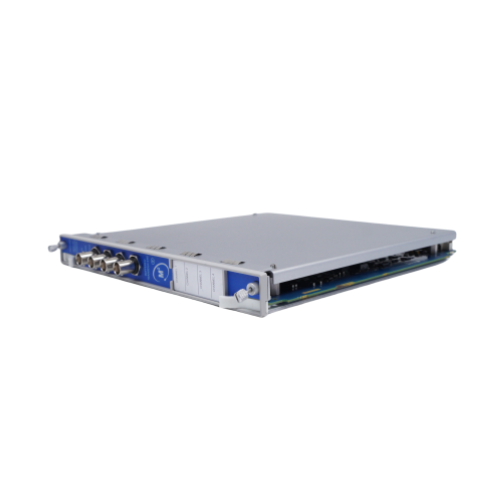

Bently Nevada 176449-03
Bently Nevada 176449-03
Bently Nevada 176449-03
