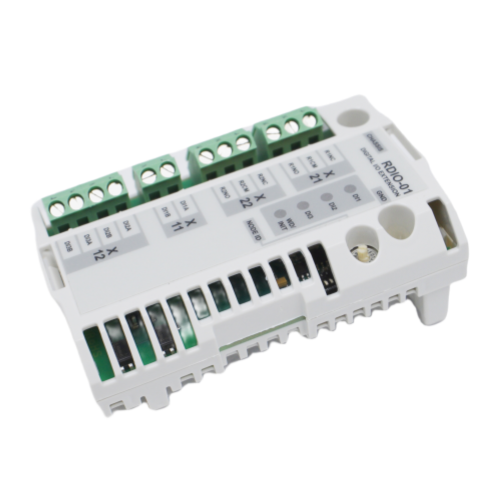

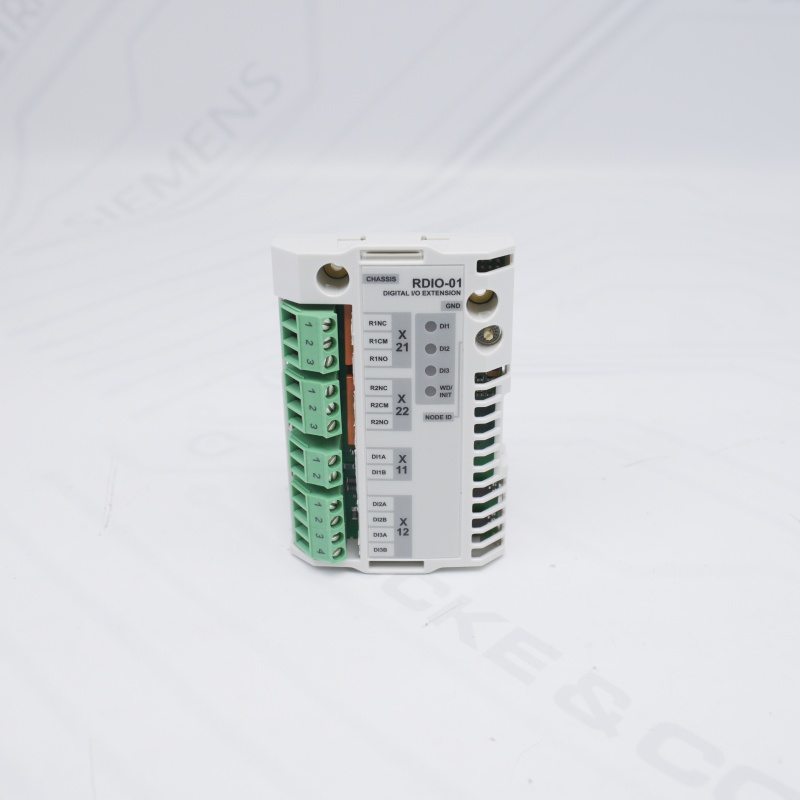

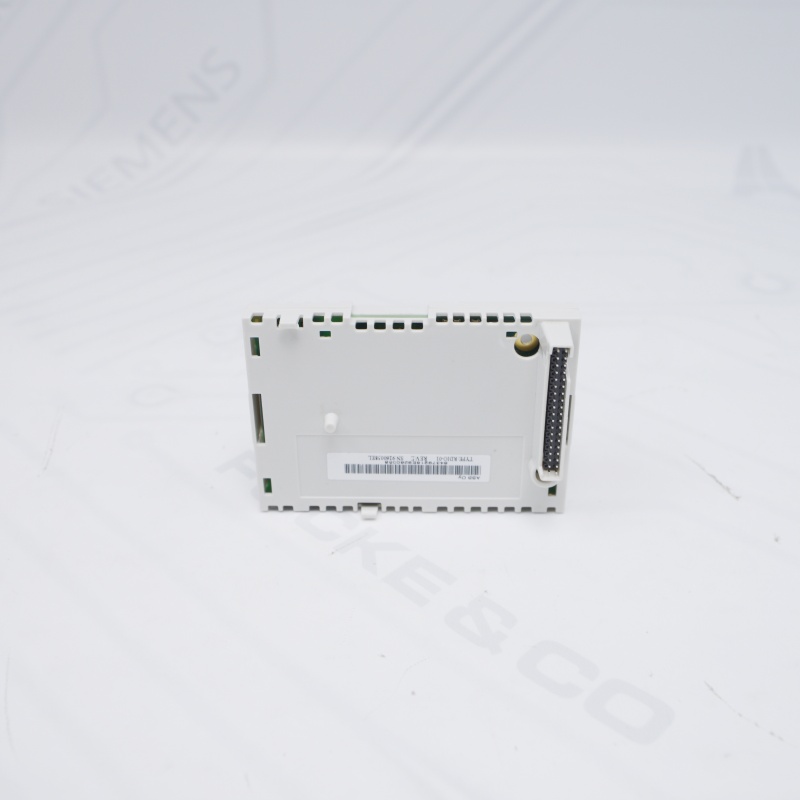

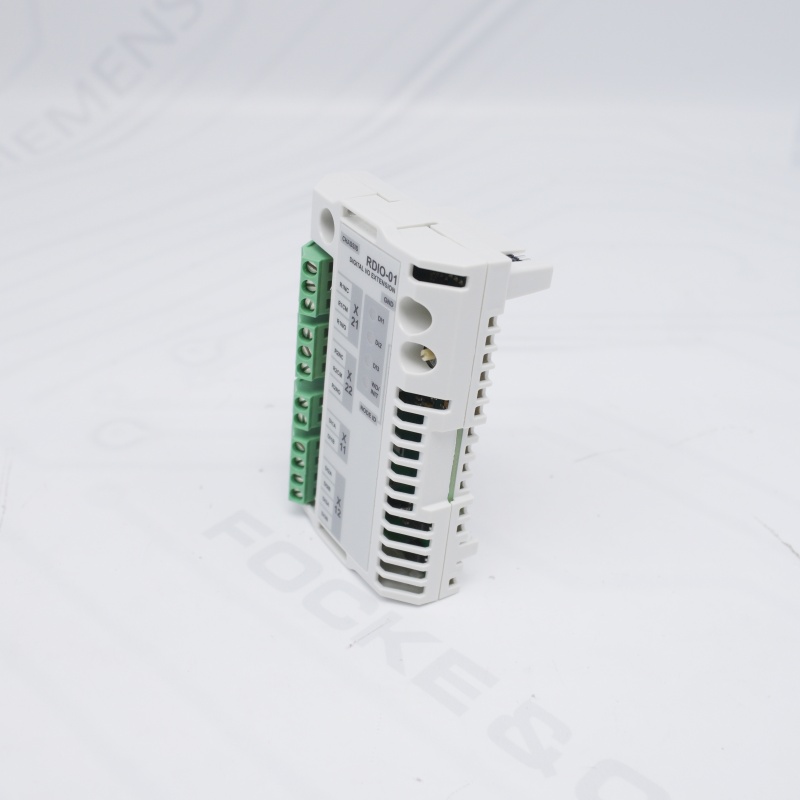

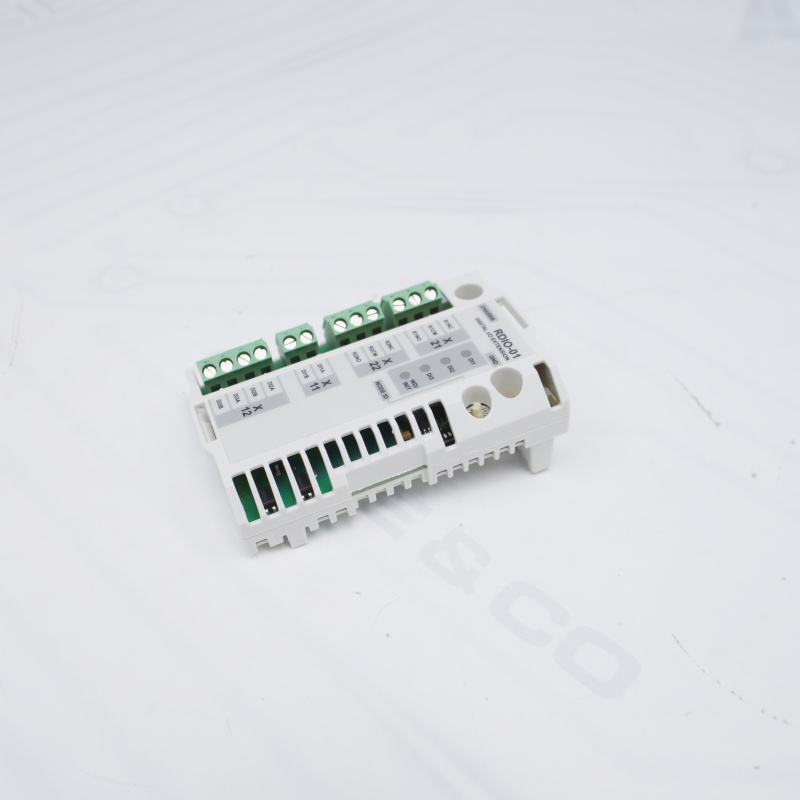

Product Details And Image
| General Information | Image | |
| Product ID | 64606816 |  |
| ABB Type Designation | RDIO-01 OPTION/SP KIT DIGITAL I/O EXTEN | |
| Input voltages | 24…250 V DC, 110…230 V AC | |
| Logic levels (DC) | dddhhh0dddhhh < 8 V, dddhhh1dddhhh ssshhh 12 V | |
| Input currents | 4 mA (min), 10 mA (typical) at 24 V DC, 4 mA (typical) at 230 VAC | |
| Filtering time (selectable for all channels) | ON: 5…10 ms , OFF: 2 ms | |
| Max. contact voltage | 120 V DC, 250 V AC | |
| Max. contact current / power | 5 A, 24 V DC; 0.4 A, 120 V DC; 1250 VA, 250 VAC | |
| Max. continuous current | 2 A rms | |
| Minimum current | 5 mA, 24 V DC | |
| Contact protection | Varistor (250 V) | |
If you want to more details，please contact me without hesitate.Email：sales@sparecenter.com
FAQs And More Technical Data of ABB RDIO-01
| General | |
| Max. power consumption | 150 mA (5 V) + 30 mA (24 V) Both voltages supplied by the RMIO board |
| Estimated min. lifetime | 100 000 h |
| Model(s) | ABB Drives |
| Dimensions | 3.0dddhhh x 1.0dddhhh x 4.0dddhhh(7.6 cm x 2.5 cm x 10.2 cm) |
| Weight | 0 lbs 3.0 oz (0.1kg ) |
| FAQs | |
| What is the primary function of the RDIO-01 module? | |
| The RDIO-01 serves as a digital input/output extension unit. It is used for integrating three digital inputs and two relay outputs into automation systems. | |
| What are the typical applications of the RDIO-01? | |
| The RDIO-01 is commonly used in industrial automation and control systems where precise monitoring and control of digital inputs and outputs are required. | |
| How can I ensure compatibility with existing systems? | |
| Verify the voltage, current, and communication requirements of your system against the RDIO-01’s specifications. Compatibility with legacy ABB systems is typical but should be confirmed. | |
Key Features
Digital Input Capacity
Supports three digital inputs with a range of up to 250 VDC or 230 VAC.
Relay Output Performance
Equipped with two relay outputs capable of handling loads up to 1250 VA, suitable for diverse industrial applications.
Versatile Design
Compact and efficient extension module designed to integrate seamlessly with ABB automation systems.
